HALF BRIDGE BASED MOSFET DRIVER

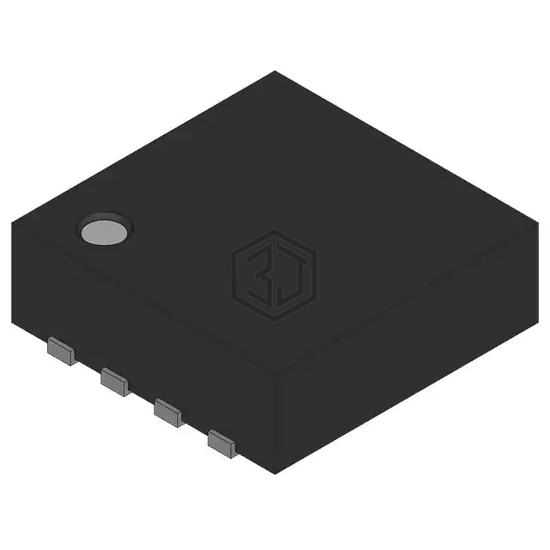

ISL6605CR is a PMIC - Gate Drivers manufactured by Intersil. HALF BRIDGE BASED MOSFET DRIVER. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 8-VQFN Exposed Pad.
In Stock: 9,693
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | 1V, 2V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 33 V |
| Rise / Fall Time (Typ) | 8ns, 8ns |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VQFN Exposed Pad |
| Supplier Device Package | 8-QFN (3x3) |
ISL6605CR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6605CRZA-T | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 8QFN | 100% | View |
| ISL6605CRZ-T | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 8QFN | 100% | View |
| ISL6207CR | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 8QFN | 99% | View |
| ISL6207CRZ-T | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 8QFN | 99% | View |
| ISL6608IRZ-T | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 8QFN | 95% | View |
| HIP-2500IB | Harris Corporation | HALF BRIDGE 500VDC DRIVER | 56% | View |
