SWITCHING CONTROLLER

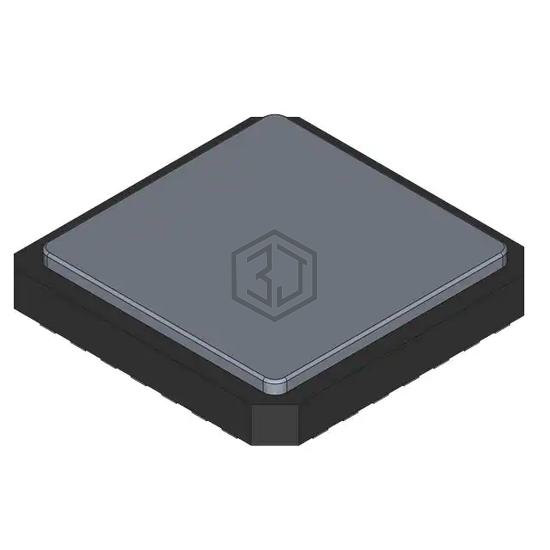

ISL6565BCR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Intersil. SWITCHING CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 105°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 28-VFQFN Exposed Pad.
In Stock: 3,440
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | PWM Signal |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 3 |
| Output Phases | 3 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Frequency - Switching | 80kHz ~ 1.5MHz |
| Duty Cycle (Max) | 66.7% |
| Synchronous Rectifier | - |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-VFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (5x5) |
ISL6565BCR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6565ACB | Intersil | SWITCHING CONTROLLER | 100% | View |
| ISL6565ACBZ | Renesas Electronics America Inc | IC REG CTRLR BUCK 28SOIC | 100% | View |
| ISL6565ACV-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 28TSSOP | 100% | View |
| ISL6558IRZ-TK | Renesas Electronics America Inc | IC REG CTRLR BUCK 20QFN | 94% | View |
| ISL6326CRZ | Renesas Electronics America Inc | IC REG CTRLR BUCK 40QFN | 94% | View |
| ISL6558IBZ-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 16SOIC | 94% | View |
Submit your RFQ for ISL6565BCR and get a quote within 24 hours.
