SWITCHING CONTROLLER

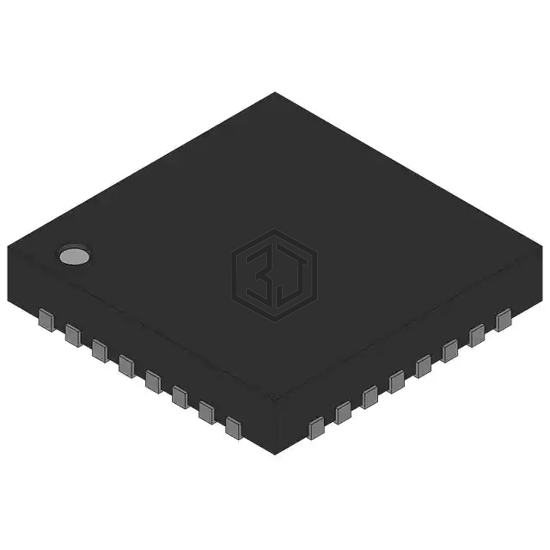

ISL6559CR-T is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Intersil. SWITCHING CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 32-VFQFN Exposed Pad.
In Stock: 6,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | PWM Signal |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 4 |
| Output Phases | 4 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Frequency - Switching | 80kHz ~ 1MHz |
| Duty Cycle (Max) | 75% |
| Synchronous Rectifier | - |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
ISL6559CR-T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6558IRZA-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 20QFN | 100% | View |
| ISL6558CRZ | Intersil | SWITCHING CONTROLLER, VOLTAGE-MO | 100% | View |
| ISL6326IRZ-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 40QFN | 100% | View |
| ISL6244HR-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 32QFN | 100% | View |
| ISL6306CRZ-TS2701 | Renesas Electronics America Inc | IC REGULATOR | 100% | View |
| ISL6565BCR-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 28QFN | 94% | View |
Submit your RFQ for ISL6559CR-T and get a quote within 24 hours.
