ZVS FULL BRIDGE PWM CONTROLLER

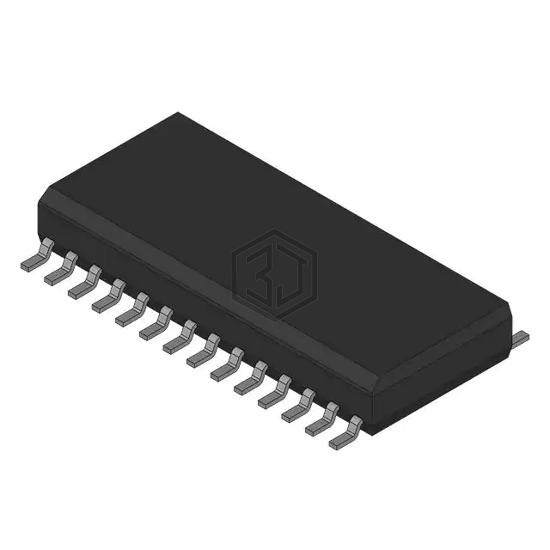

ISL6551IB-T is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Intersil. ZVS FULL BRIDGE PWM CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 85°C (TA), voltage - supply (vcc/vdd) 10.8V ~ 13.2V, package / case 28-SOIC (0.295", 7.50mm Width).
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Full-Bridge |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 10.8V ~ 13.2V |
| Frequency - Switching | 50kHz ~ 500kHz |
| Duty Cycle (Max) | 50% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Dead Time Control, Enable, Soft Start |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6551IR-T | Intersil | DUAL SWITCHING CONTROLLER | 100% | View |
| ISL6551IBZ | Intersil | DUAL SWITCHING CONTROLLER | 100% | View |
| ISL6551ABZ | Intersil | DUAL SWITCHING CONTROLLER | 100% | View |
| ISL6551IR | Intersil | DUAL SWITCHING CONTROLLER | 100% | View |
| SC4810BITSTRT | Semtech Corporation | IC REG CTRLR FWRD CONV 16TSSOP | 97% | View |
| MAX17690ATE/V+T | Analog Devices Inc./Maxim Integrated | 60V, NO-OPTO ISOLATED FLYBACK CO | 90% | View |
Submit your RFQ for ISL6551IB-T and get a quote within 24 hours.
