SWITCHING CONTROLLER

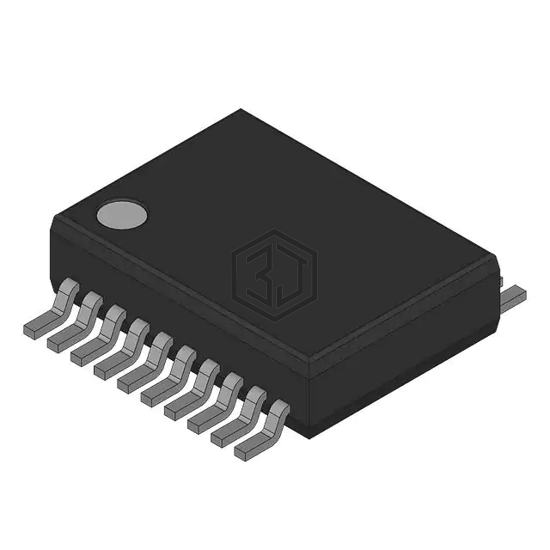

ISL6420IA is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Intersil. SWITCHING CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 5.6V ~ 16V, package / case 20-SSOP (0.154", 3.90mm Width).
In Stock: 555
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 5.6V ~ 16V |
| Frequency - Switching | 100kHz ~ 1.4MHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Phase Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP |
ISL6420IA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP19119T-E/MQ | Microchip Technology | IC REG CTRLR BCK PMBUS 28WDFN | 98% | View |
| TPS40100RGET | Texas Instruments | IC REG CTRLR BUCK 24QFN | 98% | View |
| MAX1858AEEG+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 24QSOP | 82% | View |
| LTC3886EUKG#PBF | Analog Devices Inc. | IC REG CTRLR BUCK PMBUS 52QFN | 82% | View |
| TPS40131RHBR | Texas Instruments | IC REG CTRLR BUCK 32QFN | 82% | View |
| MAX5066EUI+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 28TSSOP | 82% | View |
Submit your RFQ for ISL6420IA and get a quote within 24 hours.
