SWITCHING CONTROLLER

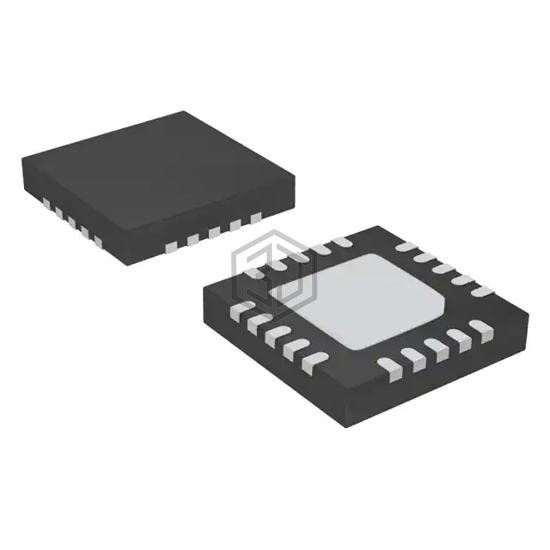

ISL6420AIRZ-TKR5264 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Intersil. SWITCHING CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 5.6V ~ 28V, package / case 20-VFQFN Exposed Pad.
In Stock: 35,345
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 5.6V ~ 28V |
| Frequency - Switching | 100kHz ~ 1.4MHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Phase Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
ISL6420AIRZ-TKR5264 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL6420IA-TK | Renesas Electronics America Inc | IC REG CTRLR BUCK 20QSOP | 100% | View |
| TPS40170RGYT | Texas Instruments | IC REG CTRLR BUCK 20VQFN | 98% | View |
| TPS40195RGYR | Texas Instruments | IC REG CTRLR BUCK 16VQFN | 98% | View |
| MAX15046BAEE+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 16QSOP | 98% | View |
| TPS40056PWP | Texas Instruments | IC REG CTRLR BUCK 16HTSSOP | 93% | View |
| LM1770SMF | National Semiconductor | SWITCHING CONTROLLER, VOLTAGE-MO | 92% | View |
Submit your RFQ for ISL6420AIRZ-TKR5264 and get a quote within 24 hours.
