SPST, 1 CHANNEL, CMOS, PDSO6

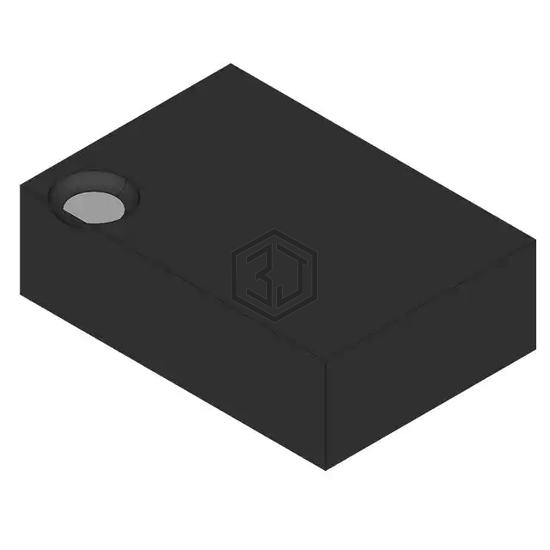

ISL54505IRUZ-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPST, 1 CHANNEL, CMOS, PDSO6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.
In Stock: 2,296
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 2.5Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 15ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | 24pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF |
| Current - Leakage (IS(off)) (Max) | 25nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-UTDFN (1.2x1) |
ISL54505IRUZ-T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG3157DL-T1-E3 | Vishay Siliconix | IC DECODER/DEMUX HS 2:1 SC70-6 | 80% | View |
| ISL84781IRZ-T | Renesas Electronics America Inc | IC MUX/DEMUX 8X1 16TQFN | 59% | View |
| MAX4781EUE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16TSSOP | 59% | View |
| ISL8499IRTZ-T | Intersil | SPDT, 4 FUNC, 1 CHANNEL, CMOS | 53% | View |
| ISL8499IVZ-T | Renesas Electronics America Inc | IC SWITCH QUAD SPDT 16TSSOP | 53% | View |
| ISL8499IR | Renesas Electronics America Inc | IC SWITCH QUAD SPDT 16QFN | 53% | View |
Submit your RFQ for ISL54505IRUZ-T and get a quote within 24 hours.
