SPDT, 1 CHANNEL, CMOS, PDSO6

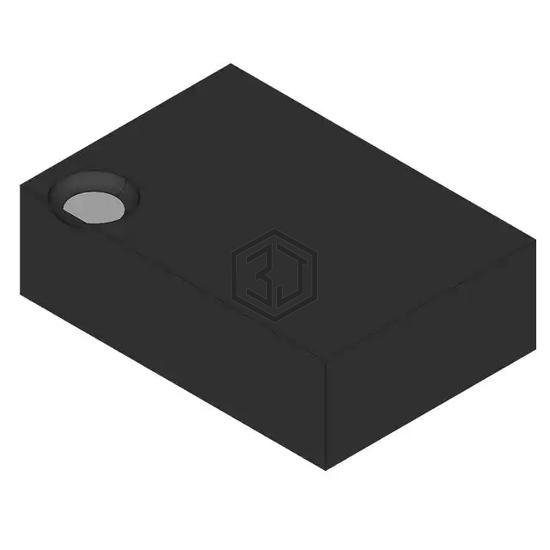

ISL54503IRUZ-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPDT, 1 CHANNEL, CMOS, PDSO6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.
In Stock: 60,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 2.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 3mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 15ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | 24pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF |
| Current - Leakage (IS(off)) (Max) | 25nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-UTDFN (1.2x1) |
ISL54503IRUZ-T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL54505IHZ-T | Renesas Electronics America Inc | IC SWITCH SPDT SOT23-6 | 100% | View |
| ISL43210AIHZ-T | Renesas Electronics America Inc | IC SWITCH SPDT SOT23-6 | 73% | View |
| MAX4781EGE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16QFN | 59% | View |
| 74HCT4852BQ-Q100,1 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4CH 16DHVQFN | 58% | View |
| 74HCT4852PW-Q100,1 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4:1 16TSSOP | 58% | View |
| 74HCT4852PW,118 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4:1 16TSSOP | 58% | View |
Submit your RFQ for ISL54503IRUZ-T and get a quote within 24 hours.
