SPST, 2 FUNC, 1 CHANNEL, CMOS

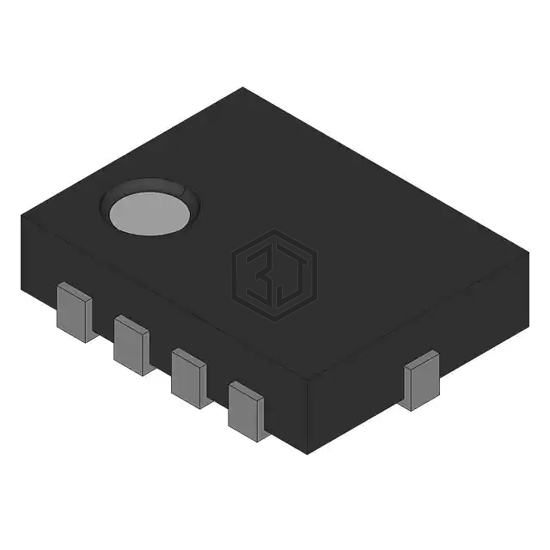

ISL54049IRUZ-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPST, 2 FUNC, 1 CHANNEL, CMOS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.
In Stock: 2,479
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 300mOhm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 60mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns |
| -3db Bandwidth | - |
| Charge Injection | 170pC |
| Channel Capacitance (CS(off), CD(off)) | 62pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UTQFN (1.8x1.4) |
ISL54049IRUZ-T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL8484IUZ-T | Renesas Electronics America Inc | IC SWITCH DUAL SPDT 10MSOP | 100% | View |
| DG2519EDN-T1-GE4 | Vishay Siliconix | IC SWITCH SPDT DUAL 10DFN | 98% | View |
| NX3L2267GU,115 | NXP USA Inc. | IC ANALOG SWITCH SPDT 10-XQFN | 71% | View |
| NX3L2467GU,115 | NXP USA Inc. | IC ANLG SWITCH DPDT 16XQFN | 71% | View |
| NLAS3899BMNTWG | onsemi | IC SWITCH DUAL DPDT 16WQFN | 66% | View |
| XS3A1T3157GSH | Nexperia USA Inc. | XS3A1T3157GS/SOT1202/X2SON6 | 62% | View |
Submit your RFQ for ISL54049IRUZ-T and get a quote within 24 hours.
