LOW-VOLTAGE, SINGLE SUPPLY, DUAL

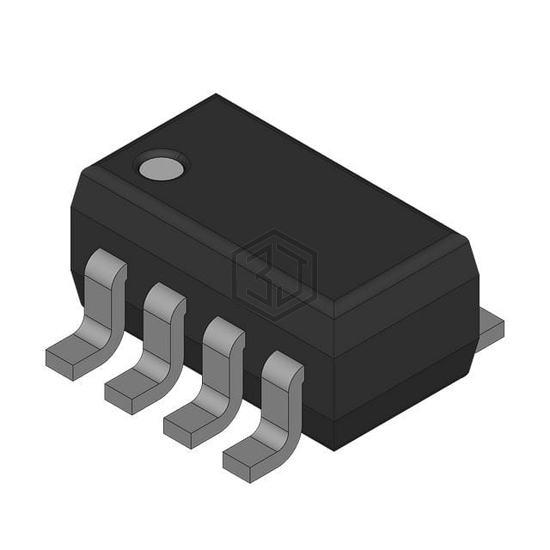

ISL5120IHZ-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. LOW-VOLTAGE, SINGLE SUPPLY, DUAL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-8, number of circuits 2.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 20Ohm |
| Channel-to-Channel Matching (ΔRon) | 800mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 35ns, 30ns |
| -3db Bandwidth | - |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 8pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -105dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-8 |
| Supplier Device Package | SOT-23-8 |
