SPDT, 2 FUNC, 1 CHANNEL, CMOS

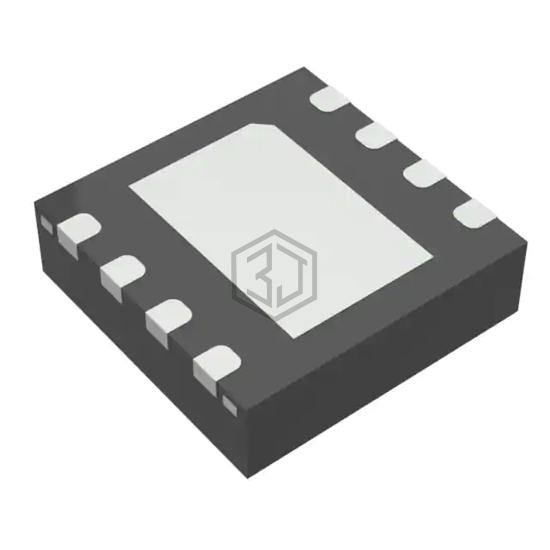

ISL43L712IRZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPDT, 2 FUNC, 1 CHANNEL, CMOS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-WDFN Exposed Pad, number of circuits 2.
In Stock: 12,126
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 250mOhm |
| Channel-to-Channel Matching (ΔRon) | 5mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 25ns |
| -3db Bandwidth | - |
| Charge Injection | -125pC |
| Channel Capacitance (CS(off), CD(off)) | 182pF, 182pF |
| Current - Leakage (IS(off)) (Max) | 3nA |
| Crosstalk | -94dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (3x3) |
ISL43L712IRZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL43L712IU | Intersil | SPDT, 2 FUNC, 1 CHANNEL, CMOS | 100% | View |
| ISL43L711IR | Intersil | DPST ANALOG SWITCH | 100% | View |
| ISL43L121IRZ | Intersil | SPDT, 2 FUNC, 2 CHANNEL, CMOS | 100% | View |
| ISL84781IVZ-T7A | Renesas Electronics America Inc | IC MUX/DEMUX 8:1 16TSSOP | 75% | View |
| PSMUX154ZMEX | Diodes Incorporated | USB2 SWITCH U-QFN1418-10 T&R 3K | 59% | View |
| ADG811YRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 58% | View |
Submit your RFQ for ISL43L712IRZ and get a quote within 24 hours.
