SPDT, 2 FUNC, 2 CHANNEL, CMOS

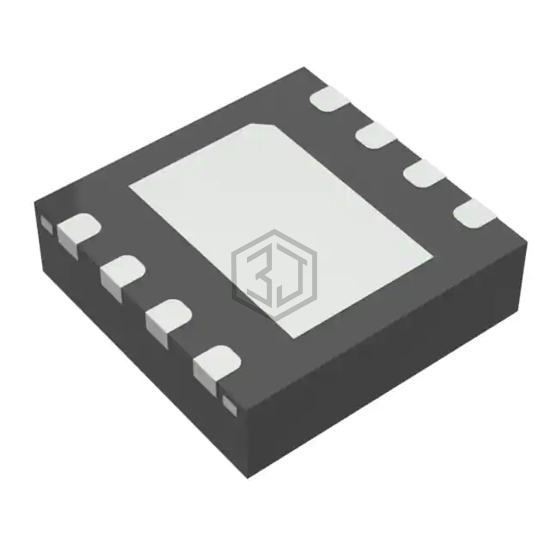

ISL43L120IRZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPDT, 2 FUNC, 2 CHANNEL, CMOS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-WDFN Exposed Pad, number of circuits 2.
In Stock: 13,289
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 250mOhm |
| Channel-to-Channel Matching (ΔRon) | 5mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 25ns |
| -3db Bandwidth | - |
| Charge Injection | -125pC |
| Channel Capacitance (CS(off), CD(off)) | 182pF, 182pF |
| Current - Leakage (IS(off)) (Max) | 3nA |
| Crosstalk | -94dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (3x3) |
ISL43L120IRZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL43L710IR | Intersil | DPST ANALOG SWITCH | 100% | View |
| ISL43L710IR-T | Renesas Electronics America Inc | IC SWITCH DUAL SPST 8TDFN | 100% | View |
| MAX4783ETE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH TRIPLE SPDT 16TQFN | 70% | View |
| MAX4783ETE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH TRIPLE SPDT 16TQFN | 70% | View |
| MAX4736EUB+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 10UMAX | 66% | View |
| FSA839UCX | Fairchild Semiconductor | LOW-VOLTAGE. 0.8OHM SPDT ANALOG | 60% | View |
Submit your RFQ for ISL43L120IRZ and get a quote within 24 hours.
