FULL BRIDGE BASED MOSFET DRIVER

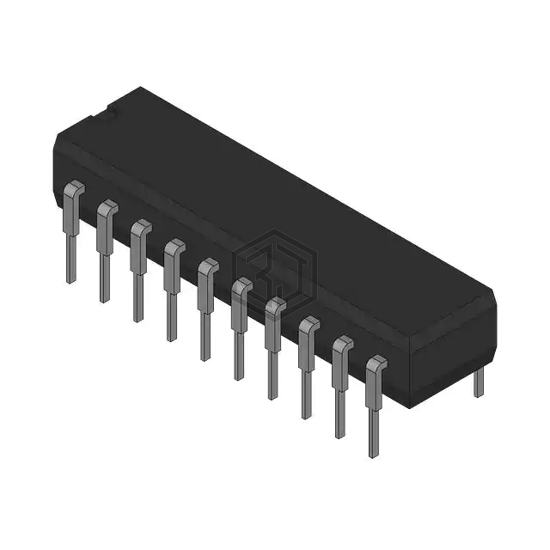

HIP4080AIP is a PMIC - Gate Drivers manufactured by Intersil. FULL BRIDGE BASED MOSFET DRIVER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9.5V ~ 15V, package / case 20-DIP (0.300", 7.62mm).
In Stock: 9,866
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 4 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9.5V ~ 15V |
| Logic Voltage - VIL, VIH | 1V, 2.5V |
| Current - Peak Output (Source, Sink) | 2.6A, 2.4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 95 V |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
HIP4080AIP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HIP4080AIPZ | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 20DIP | 100% | View |
| ISL83204AIPZ | Intersil | FULL BRIDGE BASED MOSFET DRIVER, | 98% | View |
| TPS2815P | Texas Instruments | IC GATE DRVR LOW-SIDE 8DIP | 73% | View |
| TPS2813P | Texas Instruments | IC GATE DRVR LOW-SIDE 8DIP | 73% | View |
| TPS2811P | Texas Instruments | IC GATE DRVR LOW-SIDE 8DIP | 73% | View |
| TPS2812P | Texas Instruments | IC GATE DRVR LOW-SIDE 8DIP | 73% | View |
Submit your RFQ for HIP4080AIP and get a quote within 24 hours.
