HALF BRIDGE BASED MOSFET DRIVER

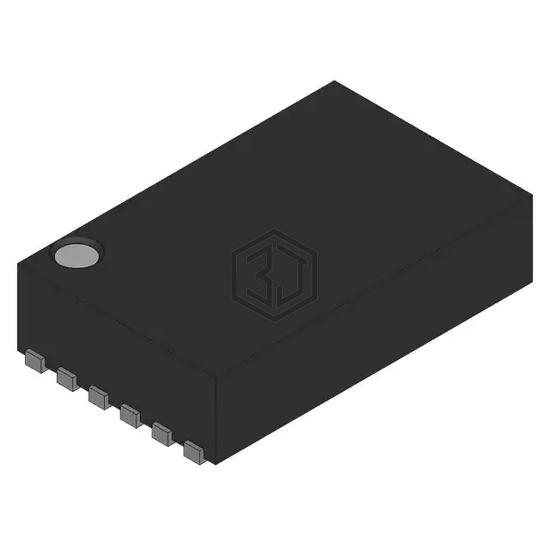

HIP2100IR4Z is a PMIC - Gate Drivers manufactured by Intersil. HALF BRIDGE BASED MOSFET DRIVER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 9V ~ 14V, package / case 12-VFDFN Exposed Pad.
In Stock: 3,941
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 14V |
| Logic Voltage - VIL, VIH | 4V, 7V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 114 V |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (4x4) |
HIP2100IR4Z is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HIP2100IR4T | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 12DFN | 100% | View |
| SIP41111DY-T1-E3 | Vishay Siliconix | IC GATE DRVR HALF-BRIDGE 8SOIC | 93% | View |
| HIP2101IB | Intersil | HALF BRIDGE BASED MOSFET DRIVER | 83% | View |
| HIP2101IBT | Intersil | HALF BRIDGE BASED MOSFET DRIVER | 83% | View |
| IXDF602SITR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 68% | View |
| IXDF602SI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 68% | View |
Submit your RFQ for HIP2100IR4Z and get a quote within 24 hours.
