SPST, 4 FUNC, 1 CHANNEL, CMOS

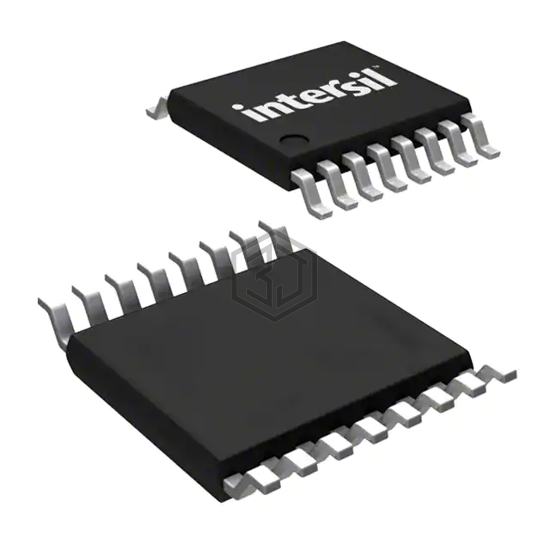

HI9P0201HS-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPST, 4 FUNC, 1 CHANNEL, CMOS. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C (TA), package / case 16-SOIC (0.295", 7.50mm Width), number of circuits 4.
In Stock: 7,756
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 50Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 50ns, 50ns |
| -3db Bandwidth | - |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -86dB @ 100kHz |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
HI9P0201HS-5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI9P0201HS-9Z | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16SOIC | 100% | View |
| STG3699QTR | STMicroelectronics | IC SWITCH QUAD SPDT 16QFN | 89% | View |
| ADG201HSKPZ | Analog Devices Inc. | IC SWITCH QUAD SPST 20PLCC | 75% | View |
| DG411LEDY-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-SOIC | 64% | View |
| DG613EEQ-T1-GE3 | Vishay Siliconix | IC ANALOG SWITCH 16TSSOP | 56% | View |
| ISL84053IAZ-T | Renesas Electronics America Inc | IC MUX/DEMUX TRIPLE 2X1 16QSOP | 52% | View |
Submit your RFQ for HI9P0201HS-5 and get a quote within 24 hours.
