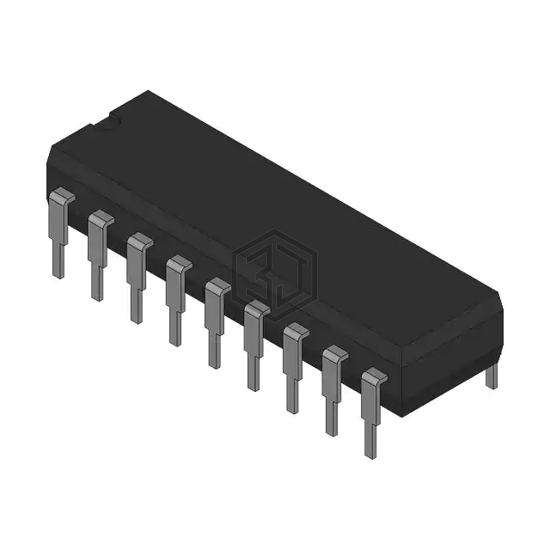

DIFFERENTIAL MUX, 4 CHANNEL
HI3-0518-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. DIFFERENTIAL MUX, 4 CHANNEL. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 75°C (TA), package / case 18-DIP (0.300", 7.62mm), number of circuits 1.
In Stock: 1,104
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 750Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 175ns, 175ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 10pF (Max) |
| Current - Leakage (IS(off)) (Max) | 10pA (Typ) |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 18-PDIP |
HI3-0518-5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI1-0518-9 | Harris Corporation | HIGH SPEED ANALOG MUX | 89% | View |
| HI1-0518-2 | Harris Corporation | HIGH SPEED ANALOG MUX | 89% | View |
| ADG426BNZ | Analog Devices Inc. | IC MULTIPLEXER 16X1 28DIP | 74% | View |
| ADG417BNZ | Analog Devices Inc. | IC SWITCH SPST 8DIP | 71% | View |
| DG419CJ+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 8DIP | 68% | View |
| HI1-0516-5 | Harris Corporation | 16-CHANNEL ANALOG MULTIPLEXER | 53% | View |
Submit your RFQ for HI3-0518-5 and get a quote within 24 hours.
