HALF BRIDGE PERIPHERAL DRIVER

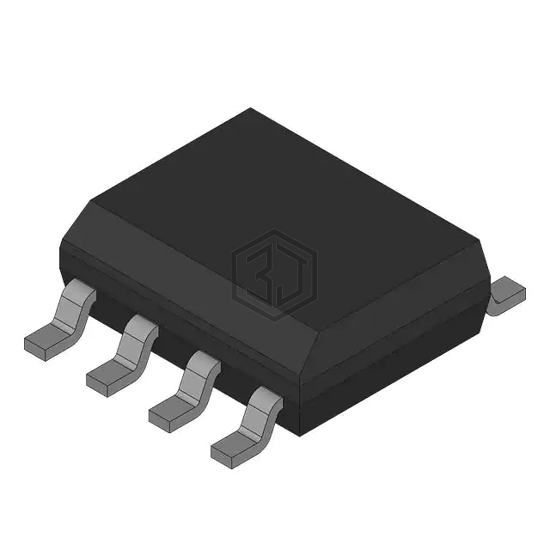

EL7156CS is a PMIC - Gate Drivers manufactured by Intersil. HALF BRIDGE PERIPHERAL DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 16.5V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 6,972
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Voltage - Supply | 4.5V ~ 16.5V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 3.5A, 3.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 14.5ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
EL7156CS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EL7156CSZ-T7 | Renesas Electronics America Inc | IC GATE DRVR HI/LOW SIDE 8SOIC | 100% | View |
| EL7156CSZ-T13 | Renesas Electronics America Inc | IC GATE DRVR HI/LOW SIDE 8SOIC | 100% | View |
| EL7156CSZ | Renesas Electronics America Inc | IC GATE DRVR HI/LOW SIDE 8SOIC | 100% | View |
| LM5112Q1SD/NOPB | Texas Instruments | IC GATE DRVR LOW-SIDE 6WSON | 95% | View |
| MAX15024AATB/V+T | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 10TDFN | 93% | View |
| NCP51100ASNT1G | onsemi | SINGLE 2 A HIGH-SPEED, LOW-SIDE | 75% | View |
