International Components Corp.

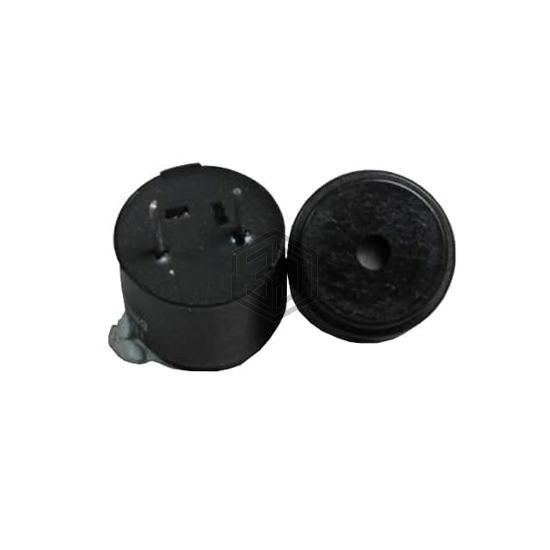

BUZZER MAGNETIC 6V 16MM TH
BRT1615P-06 is a Alarms, Buzzers, and Sirens manufactured by International Components Corp.. BUZZER MAGNETIC 6V 16MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 70°C, voltage - rated 6 V, current - supply 40mA.
In Stock: 900
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | DC |
| Voltage - Rated | 6 V |
| Voltage Range | 3 ~ 12V |
| Frequency | 2.048kHz |
| Technology | Magnetic |
| Operating Mode | Continuous |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 6V, 10cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
Submit your RFQ for BRT1615P-06 and get a quote within 24 hours.
