International Components Corp.

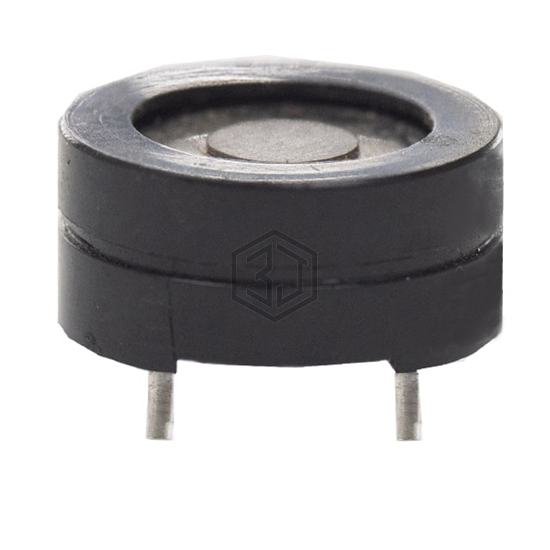

BUZZER MAGNETIC 1.5V 12MM TH
BRT1206P-01 is a Alarms, Buzzers, and Sirens manufactured by International Components Corp.. BUZZER MAGNETIC 1.5V 12MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 60°C, voltage - rated 1.5 V, current - supply 10mA.
In Stock: 1,900
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | DC |
| Voltage - Rated | 1.5 V |
| Voltage Range | 1 ~ 2V |
| Frequency | 2.048kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 70dB @ 1.5V, 10cm |
| Current - Supply | 10mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.472" Dia (12.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
Submit your RFQ for BRT1206P-01 and get a quote within 24 hours.
