International Components Corp.

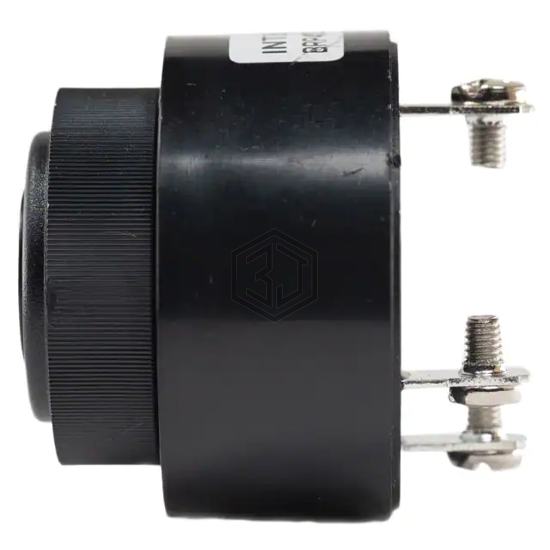

BUZZER PIEZO 24V 43.5MM PNL MNT
BRP4535S-24-CD is a Alarms, Buzzers, and Sirens manufactured by International Components Corp.. BUZZER PIEZO 24V 43.5MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -20°C ~ 60°C, voltage - rated 24 V, current - supply 30 ~ 40mA.
In Stock: 4,071
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 24 V |
| Voltage Range | 4 ~ 28V |
| Frequency | 2.9kHz |
| Technology | Piezo |
| Operating Mode | Dual Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 24V, 30cm |
| Current - Supply | 30 ~ 40mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.248" (6.30mm) |
| Size / Dimension | 1.713" Dia (43.50mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
