International Components Corp.

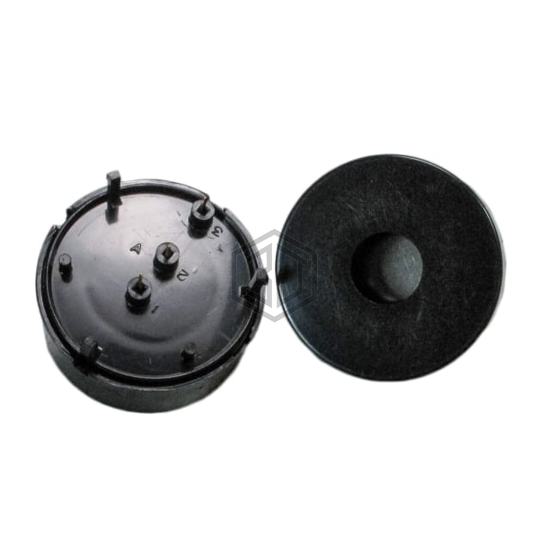

BUZZER PIEZO 9V 39MM TH
BRP4016P-30 is a Alarms, Buzzers, and Sirens manufactured by International Components Corp.. BUZZER PIEZO 9V 39MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 60°C, voltage - rated 9 V, size / dimension 1.535" Dia (39.00mm).
In Stock: 3,024
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 9 V |
| Voltage Range | 1 ~ 30V |
| Frequency | 3kHz |
| Technology | Piezo (with Feedback) |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 95dB @ 9V, 30cm |
| Current - Supply | - |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.535" Dia (39.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
Submit your RFQ for BRP4016P-30 and get a quote within 24 hours.
