International Components Corp.

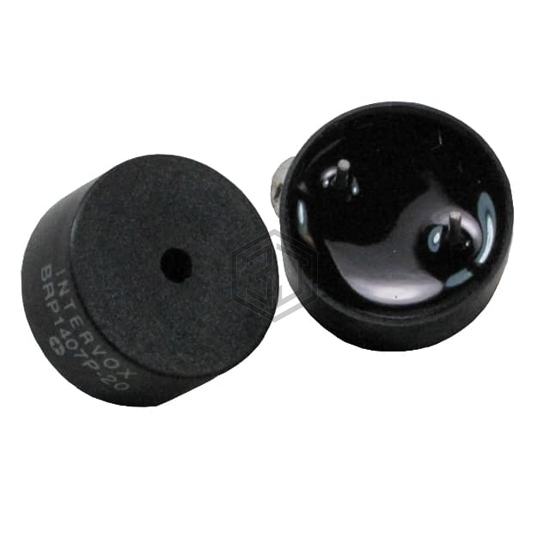

BUZZER PIEZO 20V 13.8MM TH
BRP1407P-20 is a Alarms, Buzzers, and Sirens manufactured by International Components Corp.. BUZZER PIEZO 20V 13.8MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 70°C, voltage - rated 20 V, current - supply 1mA.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 20 V |
| Voltage Range | 1 ~ 20V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Continuous |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 10V, 10cm |
| Current - Supply | 1mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.543" Dia (13.80mm) |
| Height - Seated (Max) | 0.299" (7.60mm) |
Submit your RFQ for BRP1407P-20 and get a quote within 24 hours.
