International Components Corp.

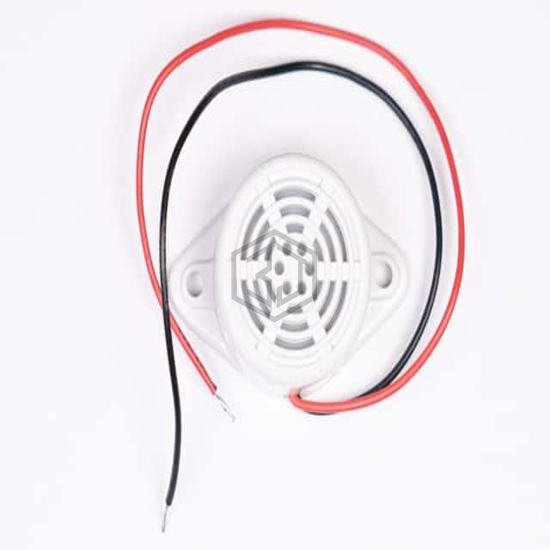

BUZZER MAGN 12V 25.8MM FLANGE
BR2618L-12 is a Alarms, Buzzers, and Sirens manufactured by International Components Corp.. BUZZER MAGN 12V 25.8MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 60°C, voltage - rated 12 V, current - supply 23mA.
In Stock: 1,050
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 7 ~ 16V |
| Frequency | 400Hz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 95dB @ 12V, 10cm |
| Current - Supply | 23mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.016" Dia (25.80mm) |
| Height - Seated (Max) | 0.693" (17.60mm) |
Submit your RFQ for BR2618L-12 and get a quote within 24 hours.
