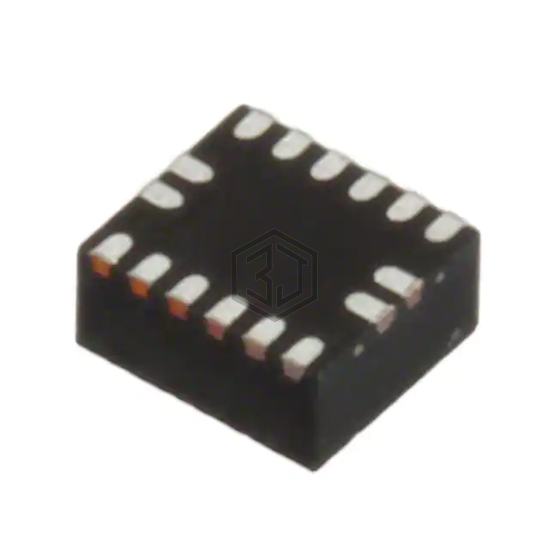

DC DC CONVERTER 0.6-5V 4W
EP5388QI is a DC DC Converters manufactured by Intel. DC DC CONVERTER 0.6-5V 4W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-PowerTFQFN Module, current - output (max) 800mA.
In Stock: 6,692
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.4V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.6 ~ 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 800mA |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 91% |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerTFQFN Module |
| Size / Dimension | 0.12" L x 0.12" W x 0.04" H (3.0mm x 3.0mm x 1.1mm) |
| Supplier Device Package | 16-QFN (3x3) |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for EP5388QI and get a quote within 24 hours.
