DC DC CONVERTER 0.75-5V 20W

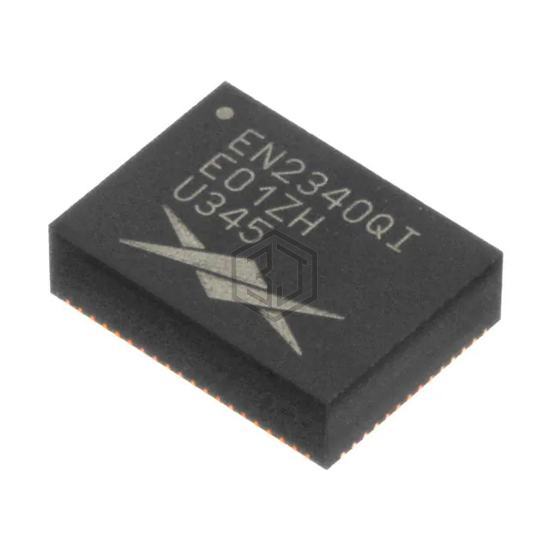

EN2340QI is a DC DC Converters manufactured by Intel. DC DC CONVERTER 0.75-5V 20W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 68-BFQFN Exposed Pad, Module, current - output (max) 4A.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 0.75 ~ 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95% |
| Mounting Type | Surface Mount |
| Package / Case | 68-BFQFN Exposed Pad, Module |
| Size / Dimension | 0.43" L x 0.32" W x 0.12" H (11.0mm x 8.0mm x 3.0mm) |
| Supplier Device Package | 68-QFN (11x8) |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for EN2340QI and get a quote within 24 hours.
