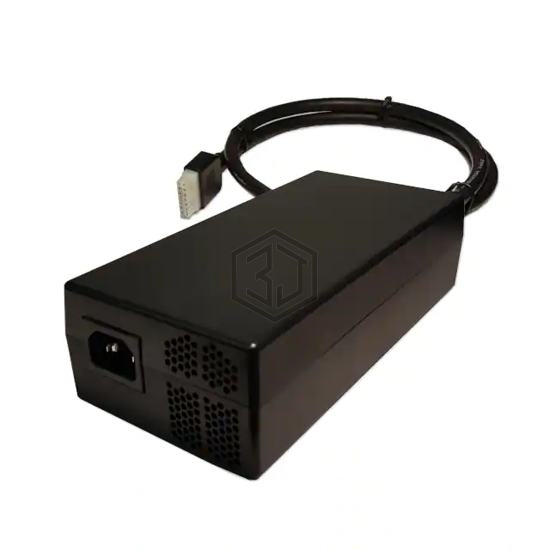

AC/DC DSKTP ADAPTER +/-12V 120W
1011556 is a AC DC Desktop, Wall Adapters manufactured by Integrated Power Designs. AC/DC DSKTP ADAPTER +/-12V 120W. Key specifications: operating temperature -20°C ~ 70°C, voltage - input 85 ~ 264 VAC, current - output (max) 8A, 2A, size / dimension 7.78" L x 3.75" W x 2.23" H (197.6mm x 95.3mm x 56.6mm).
In Stock: 4,849
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output | 12V, -12V |
| Current - Output (Max) | 8A, 2A |
| Power (Watts) | 120 W |
| No Load Power Consumption | 300mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | 86% |
| Operating Temperature | -20°C ~ 70°C |
| Output Connector | Rectangular, 14 Position |
| Cord Length | 39.4" (1.00m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 7.78" L x 3.75" W x 2.23" H (197.6mm x 95.3mm x 56.6mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for 1011556 and get a quote within 24 hours.
