DC/DC CONVERTER +/-5V +/-12V 80W

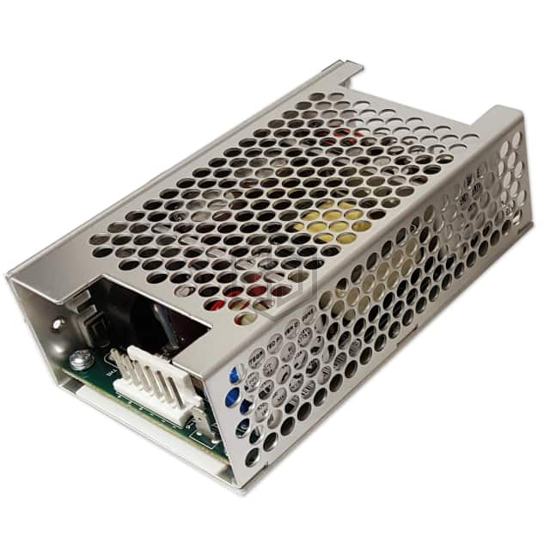

1011537CHCO is a DC DC Converters manufactured by Integrated Power Designs. DC/DC CONVERTER +/-5V +/-12V 80W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), current - output (max) 6A, 5A, 2A, 2A, size / dimension 4.70" L x 2.70" W x 1.48" H (119.4mm x 68.9mm x 37.6mm).
In Stock: 6,364
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Number of Outputs | 4 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -12V |
| Current - Output (Max) | 6A, 5A, 2A, 2A |
| Power (Watts) | 80W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | 82% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.70" L x 2.70" W x 1.48" H (119.4mm x 68.9mm x 37.6mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for 1011537CHCO and get a quote within 24 hours.
