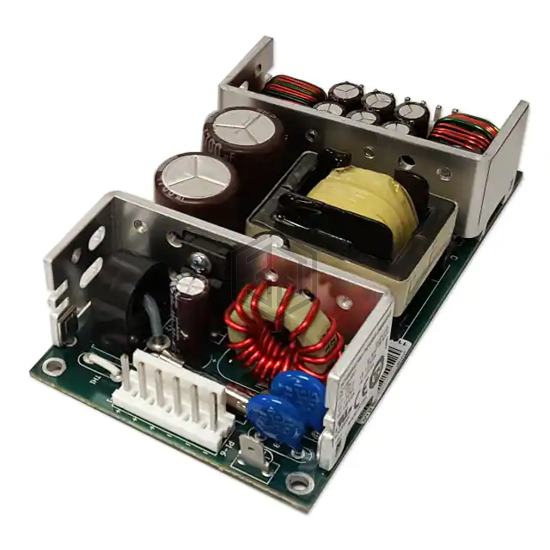

DC/DC CONVERTER +/-15V 80W
1011532 is a DC DC Converters manufactured by Integrated Power Designs. DC/DC CONVERTER +/-15V 80W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), current - output (max) 3A, 3A, size / dimension 4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm).
In Stock: 2,690
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Number of Outputs | 2 |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A, 3A |
| Power (Watts) | 80W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | 82% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for 1011532 and get a quote within 24 hours.
