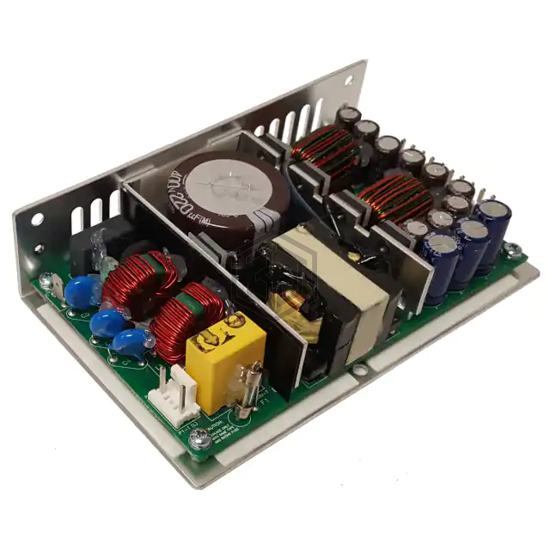

AC/DC CONVERTER 5V +/-15V 80W
1011386CH is a AC DC Converters manufactured by Integrated Power Designs. AC/DC CONVERTER 5V +/-15V 80W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm).
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chassis |
| Number of Outputs | 3 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | -15V |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 8 A |
| Current - Output 2 | 2 A |
| Current - Output 3 | 2 A |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 80W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | - |
| Efficiency | 88% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Remote Sense, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for 1011386CH and get a quote within 24 hours.
