DC/DC CONVERTER 28V 70W

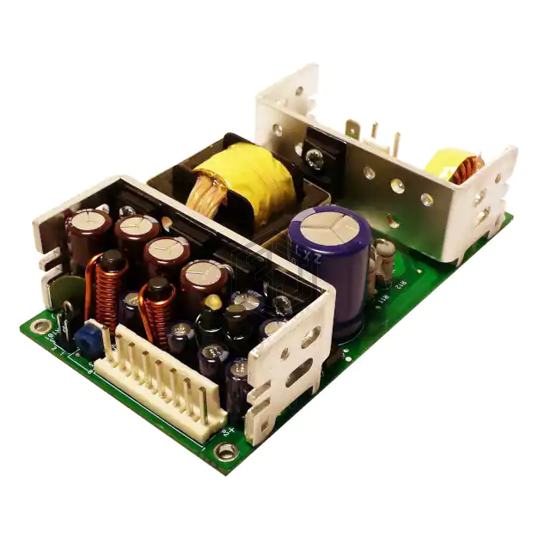

1010793 is a DC DC Converters manufactured by Integrated Power Designs. DC/DC CONVERTER 28V 70W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), current - output (max) 2.5A, size / dimension 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm).
In Stock: 114
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 72V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 70W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | 78% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for 1010793 and get a quote within 24 hours.
