DC/DC CNVRTR 3.3V 5V +/-12V 70W

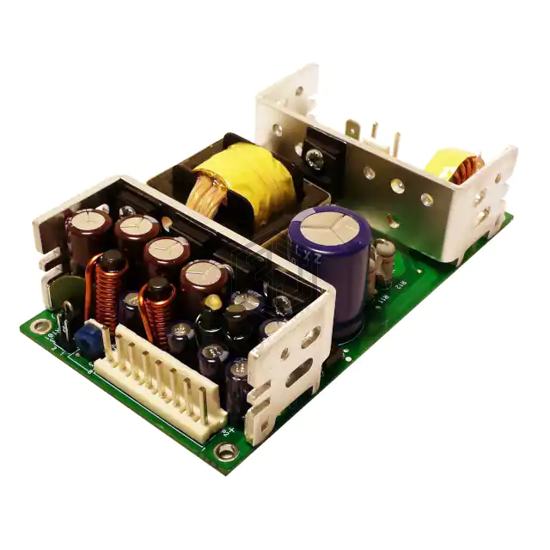

1010773 is a DC DC Converters manufactured by Integrated Power Designs. DC/DC CNVRTR 3.3V 5V +/-12V 70W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), current - output (max) 6A, 5A, 2A, 2A, size / dimension 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 72V |
| Number of Outputs | 4 |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -12V |
| Current - Output (Max) | 6A, 5A, 2A, 2A |
| Power (Watts) | 70W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | 78% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for 1010773 and get a quote within 24 hours.
