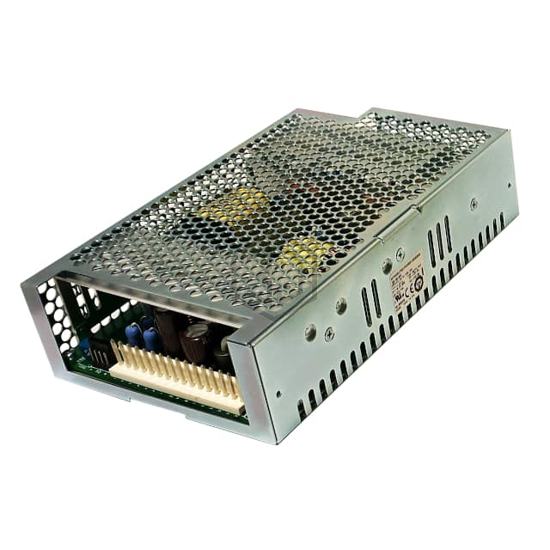

DC/DC CONVERTER 3.3V 122W
1010761CHCO is a DC DC Converters manufactured by Integrated Power Designs. DC/DC CONVERTER 3.3V 122W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), current - output (max) 37A, size / dimension 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm).
In Stock: 3,304
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 37A |
| Power (Watts) | 122W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | 84% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for 1010761CHCO and get a quote within 24 hours.
