DC/DC CONVERTER 5V +/-15V 185W

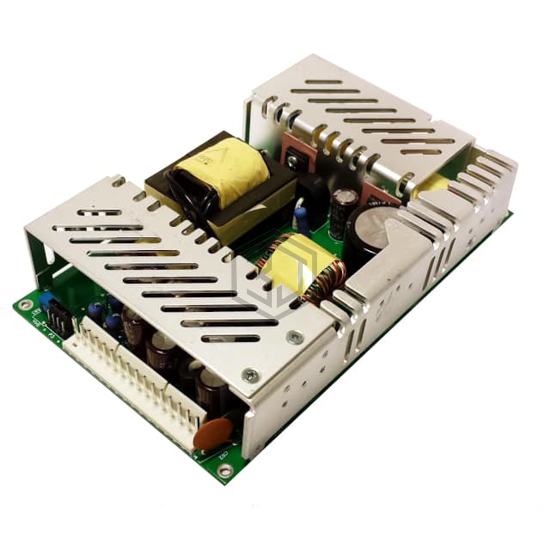

1010754 is a DC DC Converters manufactured by Integrated Power Designs. DC/DC CONVERTER 5V +/-15V 185W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), current - output (max) 20A, 4A, 3A, size / dimension 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm).
In Stock: 26
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 3 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | -15V |
| Current - Output (Max) | 20A, 4A, 3A |
| Power (Watts) | 185W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | 84% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for 1010754 and get a quote within 24 hours.
