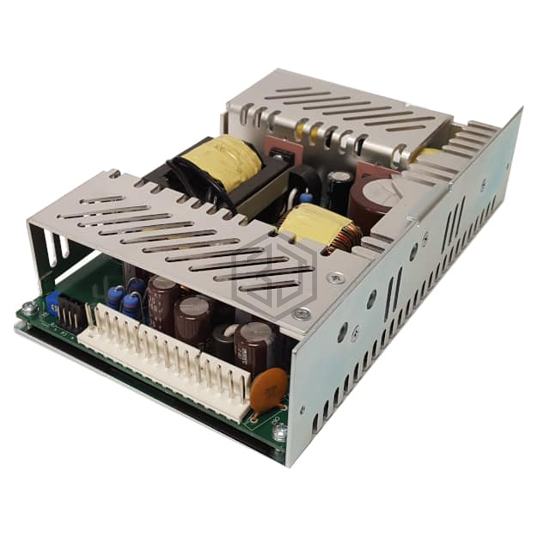

DC/DC CNVRTR 5V 3.3V +/-12V 181W
1010721CH is a DC DC Converters manufactured by Integrated Power Designs. DC/DC CNVRTR 5V 3.3V +/-12V 181W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), current - output (max) 20A, 10A, 2A, 2A, size / dimension 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm).
In Stock: 3,410
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chassis |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 72V |
| Number of Outputs | 4 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 3.3V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -12V |
| Current - Output (Max) | 20A, 10A, 2A, 2A |
| Power (Watts) | 181W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | 84% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
