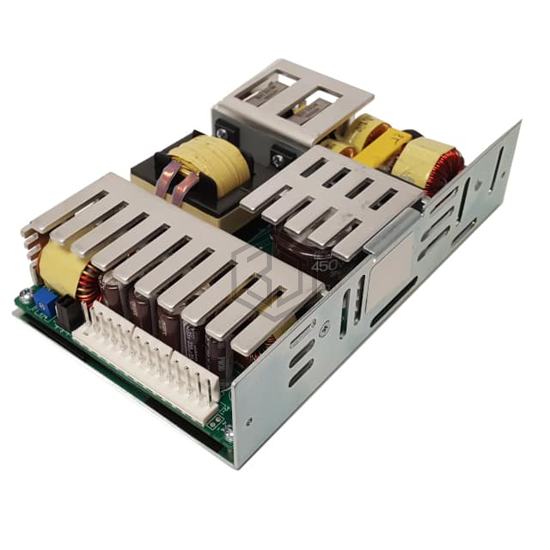

DC/DC CONVERTER +/-12V 147W
1010672CH is a DC DC Converters manufactured by Integrated Power Designs. DC/DC CONVERTER +/-12V 147W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), current - output (max) 7.5A, 5A, size / dimension 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm).
In Stock: 3,536
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chassis |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 2 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 7.5A, 5A |
| Power (Watts) | 147W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | 82% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
