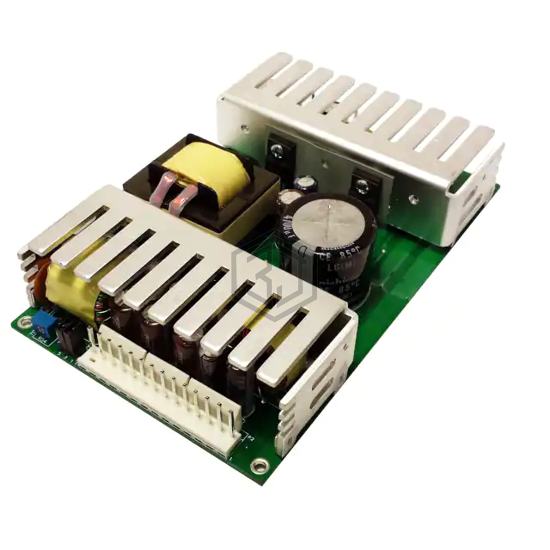

DC/DC CONVERTER 28V 150W
1010667 is a DC DC Converters manufactured by Integrated Power Designs. DC/DC CONVERTER 28V 150W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), current - output (max) 5.4A, size / dimension 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 5.4A |
| Power (Watts) | 150W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | 82% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for 1010667 and get a quote within 24 hours.
