DC/DC CONVERTER +/-15V 105W

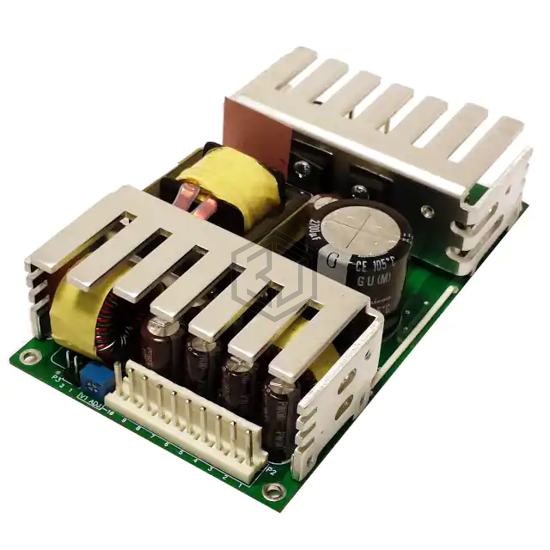

1010651 is a DC DC Converters manufactured by Integrated Power Designs. DC/DC CONVERTER +/-15V 105W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), current - output (max) 4A, 3A, size / dimension 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm).
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 72V |
| Number of Outputs | 2 |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A, 3A |
| Power (Watts) | 105W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | 82% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for 1010651 and get a quote within 24 hours.
