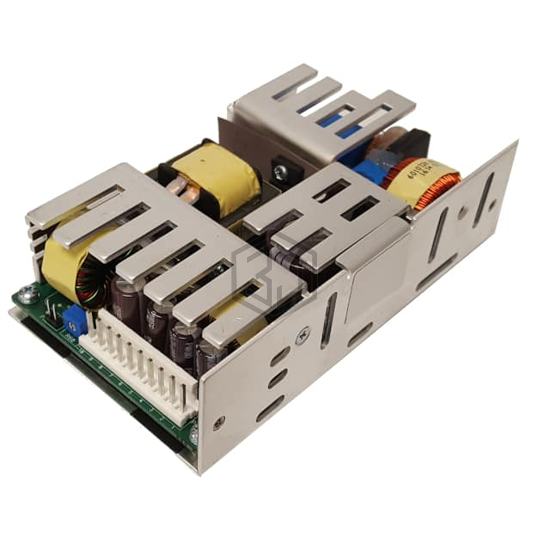

DC/DC CONVERTER 5V +/-12V 110W
1010630CH is a DC DC Converters manufactured by Integrated Power Designs. DC/DC CONVERTER 5V +/-12V 110W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), current - output (max) 10A, 3A, 3A, size / dimension 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm).
In Stock: 2,390
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chassis |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 3 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | -12V |
| Current - Output (Max) | 10A, 3A, 3A |
| Power (Watts) | 110W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | 82% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for 1010630CH and get a quote within 24 hours.
