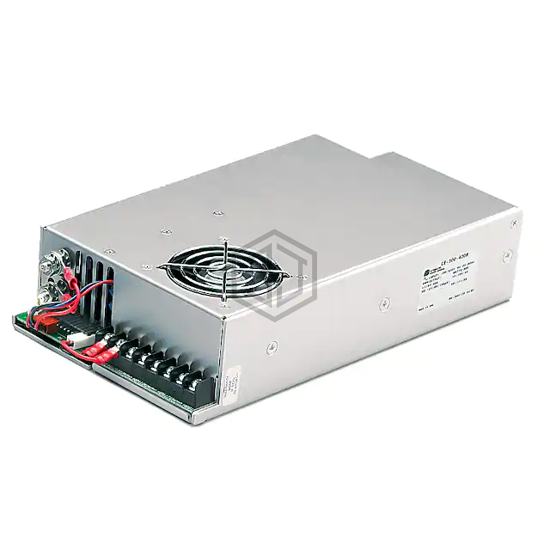

AC/DC CNVT 5V 28V 12V -5V 2X-12V
1010555 is a AC DC Converters manufactured by Integrated Power Designs. AC/DC CNVT 5V 28V 12V -5V 2X-12V. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 50°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 8.50" L x 4.90" W x 1.95" H (215.9mm x 124.5mm x 49.5mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Enclosed |
| Number of Outputs | 5 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 28V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -5V |
| Voltage - Output 5 | -12V |
| Voltage - Output 6 | -12V |
| Current - Output 1 | 40 A |
| Current - Output 2 | 3 A |
| Current - Output 3 | 6 A |
| Current - Output 4 | 2 A |
| Current - Output 5 | 2 A |
| Current - Output 6 | - |
| Power (Watts) | 300W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | - |
| Efficiency | 55% |
| Operating Temperature | 0°C ~ 50°C (With Derating) |
| Features | Adjustable Output, Remote Sense, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.50" L x 4.90" W x 1.95" H (215.9mm x 124.5mm x 49.5mm) |
| Approval Agency | CE, TUV, UKCA |
| Standard Number | 62368-1 |
Submit your RFQ for 1010555 and get a quote within 24 hours.
