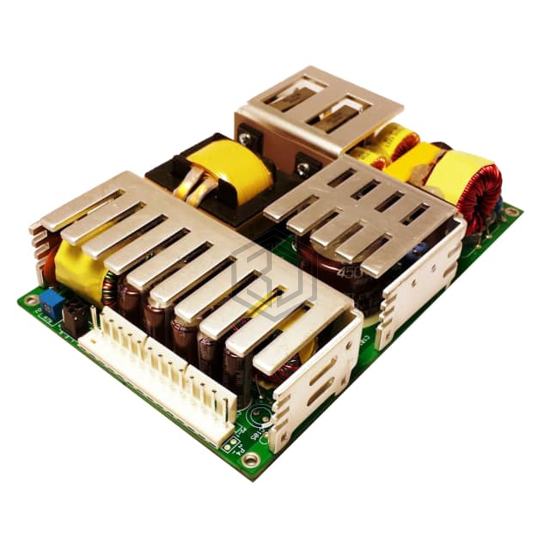

AC/DC CNVRTR +/-5V +/-15V 150W
1010505 is a AC DC Converters manufactured by Integrated Power Designs. AC/DC CNVRTR +/-5V +/-15V 150W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm).
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 4 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | 15V |
| Voltage - Output 4 | -15V |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 15 A |
| Current - Output 2 | 8 A |
| Current - Output 3 | 2 A |
| Current - Output 4 | 2 A |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 150W |
| Applications | Industrial, ITE (Commercial), Laboratory, Medical |
| Voltage - Isolation | - |
| Efficiency | 82% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Remote Sense, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
