AC/DC CONVERTER 5V +/-15V 25W

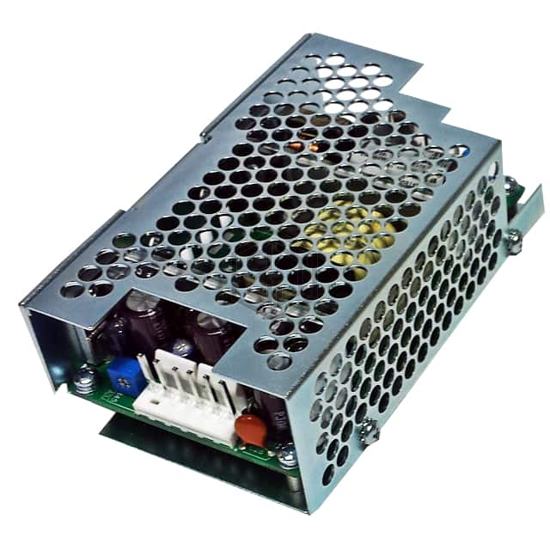

1010418CHCO is a AC DC Converters manufactured by Integrated Power Designs. AC/DC CONVERTER 5V +/-15V 25W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 100 ~ 240 VAC, size / dimension 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm).
In Stock: 9,251
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 3 |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | -15V |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 3 A |
| Current - Output 2 | 1.5 A |
| Current - Output 3 | 500 mA |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 25W |
| Applications | Industrial, ITE (Commercial), Medical |
| Voltage - Isolation | - |
| Efficiency | 69% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) |
| Approval Agency | CE, cURus, TUV, UKCA |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for 1010418CHCO and get a quote within 24 hours.
