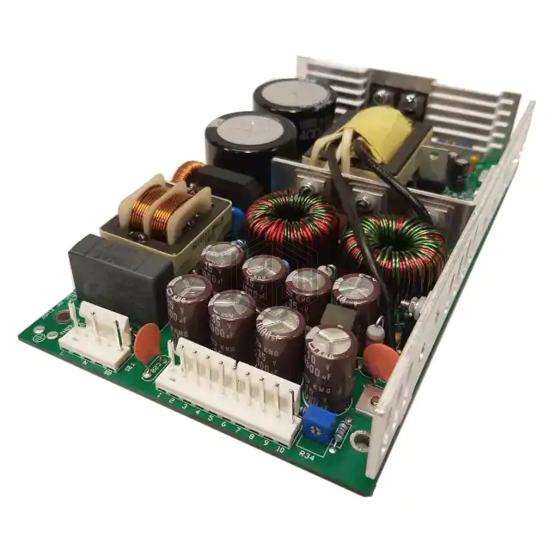

AC/DC CONVERTER +/-17V 115W
1010125 is a AC DC Converters manufactured by Integrated Power Designs. AC/DC CONVERTER +/-17V 115W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 50°C (With Derating), voltage - input 100 ~ 240 VAC, size / dimension 7.00" L x 4.25" W x 1.45" H (177.8mm x 108.0mm x 36.8mm).
In Stock: 56
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Open Frame |
| Number of Outputs | 2 |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output 1 | 17V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | -17V |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 3.4 A |
| Current - Output 2 | 3.4 A |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 115W |
| Applications | Industrial, ITE (Commercial) |
| Voltage - Isolation | - |
| Efficiency | 76% |
| Operating Temperature | 0°C ~ 50°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.00" L x 4.25" W x 1.45" H (177.8mm x 108.0mm x 36.8mm) |
| Approval Agency | CE, TUV, UKCA |
| Standard Number | 62368-1 |
