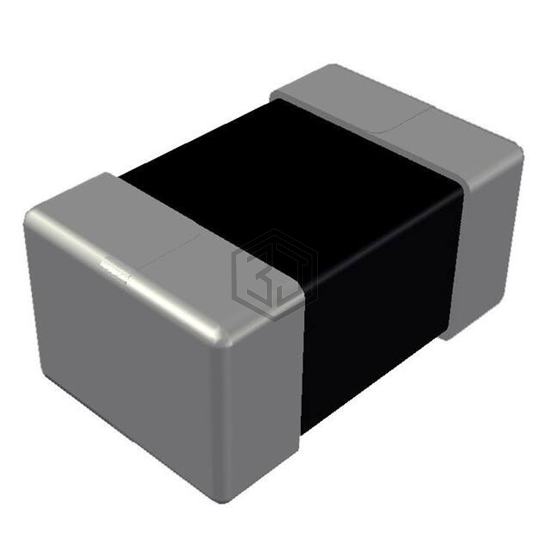

NFC FIXED IND 0603 160NH 1200MA
MNI1608PR16KBPDG is a Fixed Inductors manufactured by INPAQ Technology Co., Ltd. NFC FIXED IND 0603 160NH 1200MA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0603 (1608 Metric), current rating (amps) 1.2 A.
In Stock: 4,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 160 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.2 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 125mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 330MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
Submit your RFQ for MNI1608PR16KBPDG and get a quote within 24 hours.
