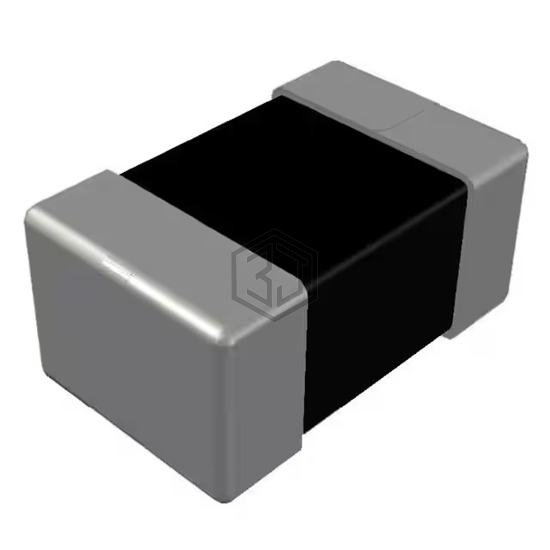

FIXED IND 0805 2.2UH 0.9A 0.17OH
MIP20122R2MBEDG is a Fixed Inductors manufactured by INPAQ Technology Co., Ltd. FIXED IND 0805 2.2UH 0.9A 0.17OH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 0805 (2012 Metric), current rating (amps) 900 mA.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 170mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 70MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for MIP20122R2MBEDG and get a quote within 24 hours.
