POWER INDUCTOR 7.7X6.5X3 2.2UH 2

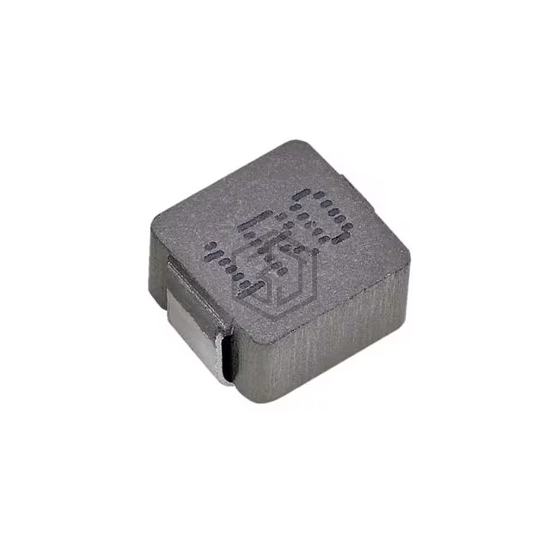

AIP0630GX-2R2MPBDG is a Fixed Inductors manufactured by INPAQ Technology Co., Ltd. POWER INDUCTOR 7.7X6.5X3 2.2UH 2. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 9.9 A.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Alloy Powder |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9.9 A |
| Current - Saturation (Isat) | 14.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 13.1mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 32MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.256" W (7.20mm x 6.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
