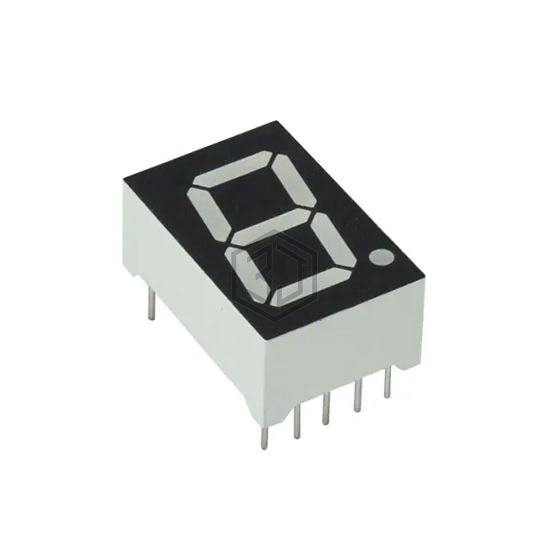

DISP 7SEG 0.56" SGL YLW-GN 10DIP
INND-TS56YGAB is a Display Modules - LED Character and Numeric manufactured by Inolux. DISP 7SEG 0.56" SGL YLW-GN 10DIP. Key specifications: voltage - forward (vf) (typ) 2V, package / case 10-DIP (0.600", 15.24mm), color Yellow-Green, current - test 20mA.
In Stock: 117
| Attribute | Value |
|---|---|
| Product Status | Active |
| Display Format | - |
| Number of Characters | 1 |
| Size / Dimension | 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Yellow-Green |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Millicandela Rating | 15mcd |
| Wavelength - Peak | 572nm |
| Power Dissipation (Max) | 70mW |
| Package / Case | 10-DIP (0.600", 15.24mm) |
Submit your RFQ for INND-TS56YGAB and get a quote within 24 hours.
