LED RGB CLEAR 0805 SMD

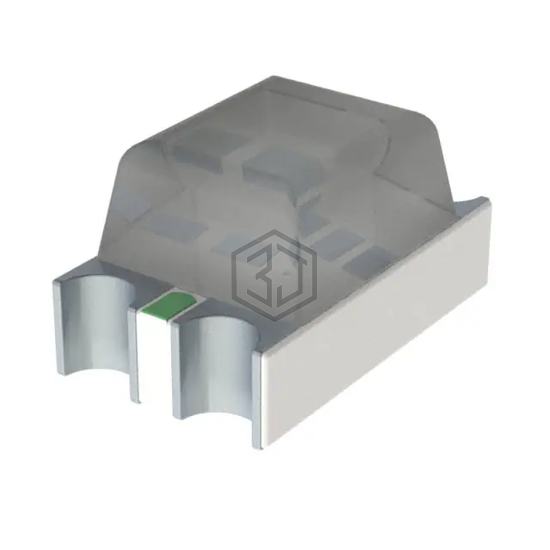

IN-S85TATRGB is a LED Indication - Discrete manufactured by Inolux. LED RGB CLEAR 0805 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3.1V Green, 3.1V Blue, package / case 0805 (2012 Metric), color Red, Green, Blue (RGB).
In Stock: 1,205
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Clear |
| Lens Transparency | Clear |
| Millicandela Rating | 200mcd Red, 520mcd Green, 140mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.1V Green, 3.1V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 622nm Red, 521nm Green, 467nm Blue |
| Wavelength - Peak | 625nm Red, 523nm Green, 470nm Blue |
| Features | - |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Height (Max) | 1.10mm |
Submit your RFQ for IN-S85TATRGB and get a quote within 24 hours.
