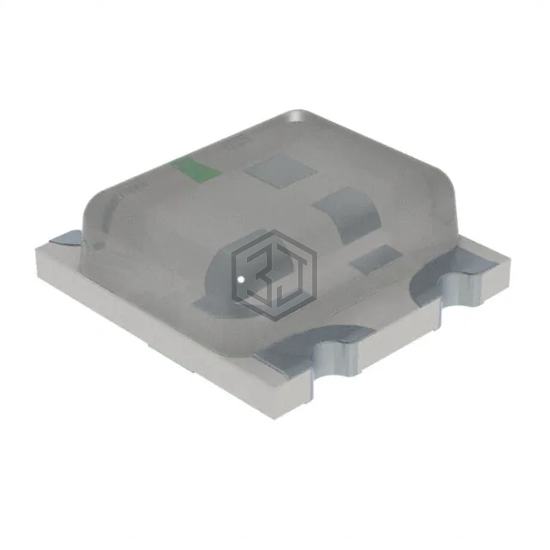

LED RGB CLEAR 0606 SMD
IN-S66TATRGB is a LED Indication - Discrete manufactured by Inolux. LED RGB CLEAR 0606 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Red, 3.2V Green, 3.2V Blue, package / case 0606 (1616 Metric), color Red, Green, Blue (RGB).
In Stock: 5,310
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Clear |
| Lens Transparency | Clear |
| Millicandela Rating | 100mcd Red, 400mcd Green, 110mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.50mm x 1.15mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 525nm Green, 468nm Blue |
| Wavelength - Peak | 630nm Red, 530nm Green, 470nm Blue |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | 0606 |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Height (Max) | 0.55mm |
Submit your RFQ for IN-S66TATRGB and get a quote within 24 hours.
