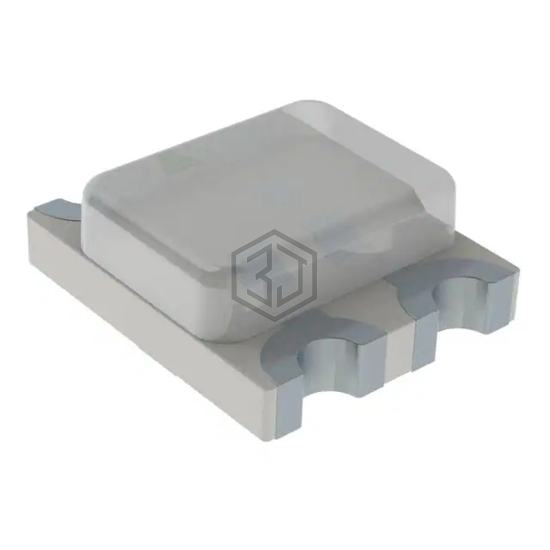

LED RGB CLEAR 1210 SMD
IN-S128TATRGB is a LED Indication - Discrete manufactured by Inolux. LED RGB CLEAR 1210 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Red, 3.2V Green, 3.2V Blue, package / case 1210 (3225 Metric), color Red, Green, Blue (RGB).
In Stock: 9,941
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Clear |
| Lens Transparency | Clear |
| Millicandela Rating | 200mcd Red, 600mcd Green, 180mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.70mm x 2.00mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 520nm Green, 465nm Blue |
| Wavelength - Peak | 636nm Red, 521nm Green, 464nm Blue |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.10mm |
