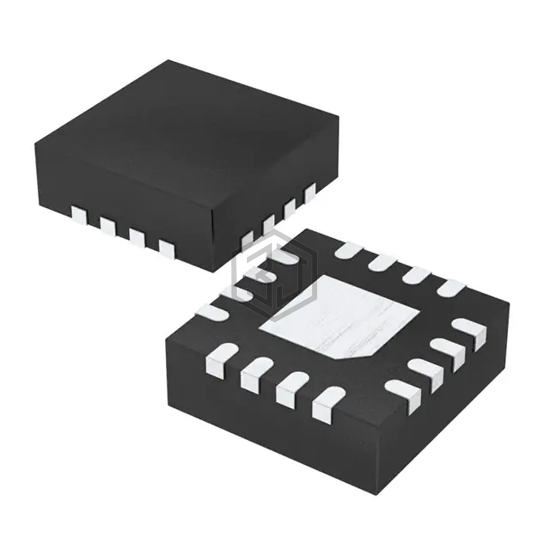

IC GATE DRVR HALF-BRIDGE 16MLPQ
IRS21844MPBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 16MLPQ. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 16-VFQFN Exposed Pad, 14 Leads.
In Stock: 8,994
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 1.9A, 2.3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 40ns, 20ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad, 14 Leads |
| Supplier Device Package | 16-MLPQ (4x4) |
IRS21844MPBF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IR2184STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 100% | View |
| IRS21844SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 14SOIC | 100% | View |
| IR21844STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 14SOIC | 100% | View |
| IRS21844STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 14SOIC | 100% | View |
| IRS2184STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 100% | View |
| IR21844SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 14SOIC | 100% | View |
Submit your RFQ for IRS21844MPBF and get a quote within 24 hours.
